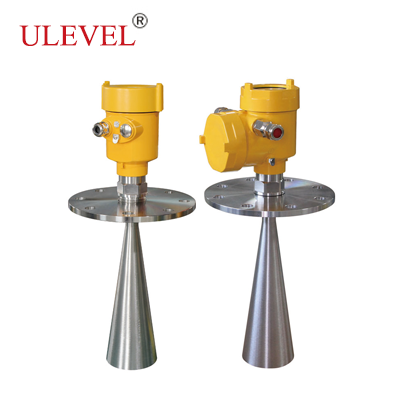

UVRL-32 Horn Antenna Radar Level Meter
Specifications
Application: Solid materials, strong dust, easy to crystallize, and condensation occasions
Range: 20m
Accuracy: ±3mm
Transmission frequency: 26GHz
Antenna type: Horn Wrapped With PTFE Antenna
Process temperature: -40～230℃
Process pressure: -0.1～2.0MPa
Process fitting: Flange
Housing: Aluminum
Protection rating: IP67
Power: DC 24V, AC 220V
Output: 4-20mA/HART
Display: LCD
Explosion-proof: Exia IIC T6
