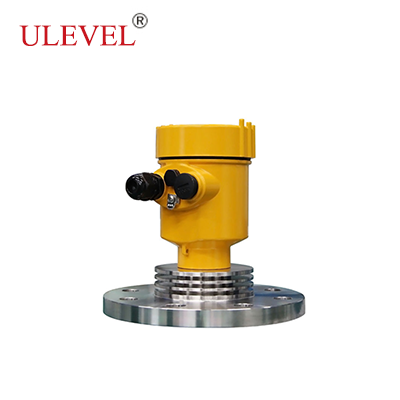

UVRL-41 120GHZ FMCW Radar Level Meter
Specifications
Range: 0.1～35m
Accuracy: ±2mm
Transmission frequency: 120GHz
Antenna size: 78mm Lens antenna
Antenna Material: PTFE
Process temperature: -40～200℃
Process pressure: -0.1～2.5MPa
Process fitting: Flange ≥DN80
Housing：Aluminum
Beam angle: 3°
Power: DC 24V, AC 220V
Output: 4-20mA/HART/Modbus-RS485
